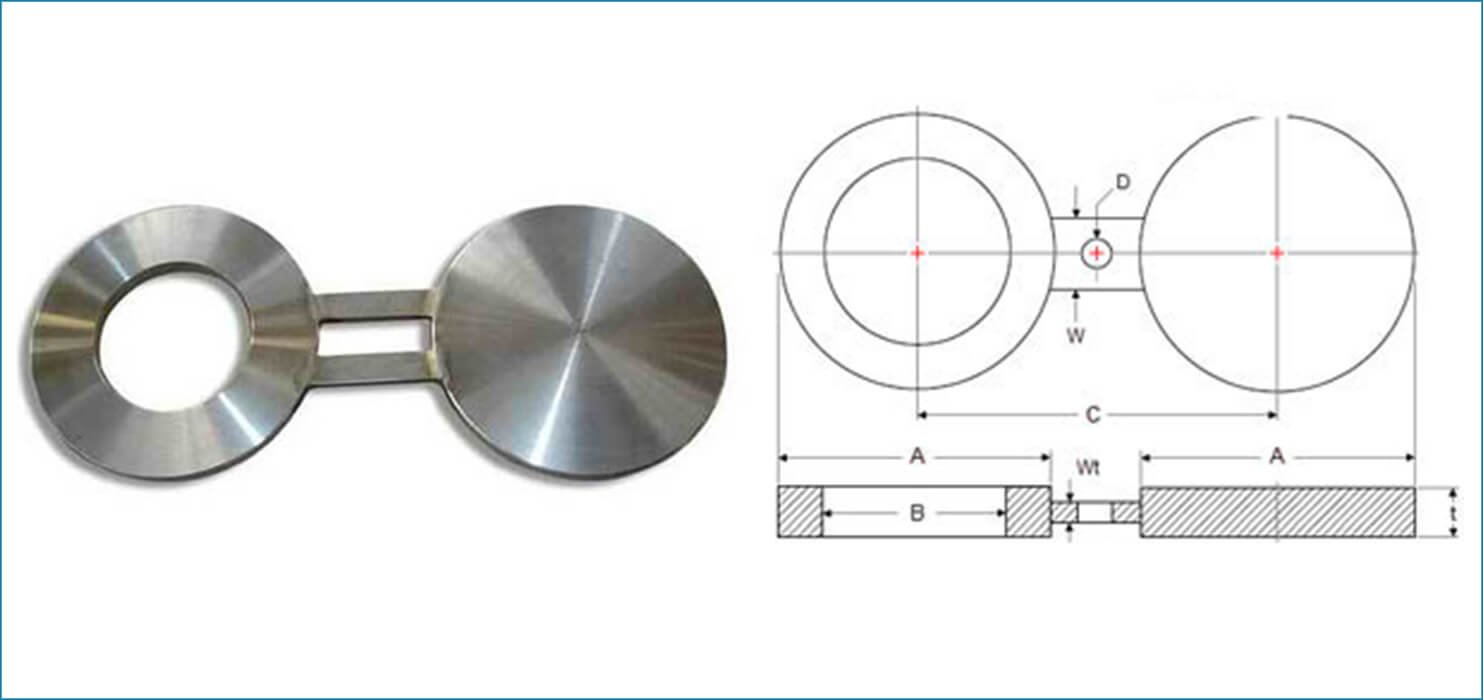

Show Blind Flanges is utilized to verifiably ensure that a thing of stuff is fittingly and safely blanked off with no shot at any stream or spillage through a valve during upkeep. Made scored situation stifle Flanges is utilized to stream can be redirected to different things of contraption yet not simply avoided around the sensible as this would bargain the succeeding farthest reaches of the show wallow. Show puzzle Flanges PN16 of the plainly frustrated will have an opening to allow stream through the line during progress and the farthest edge is strong to confound stream during help. Set steel show floor Flanges are everything considered noticeable as a constant contraption with take out measure diverting frameworks. We are Exhibition Blind Flanges manufacturerss in India.

Nutech Overseas Blind Flanges to Singapore, Philippines, Thailand, UK, Bahrain, India, Malaysia, Indonesia, Kuwait, Vietnam, Oman, Qatar, South Africa, Saudi Arabia (KSA), Joined Bedouin Emirates (UAE). We are driving Exhibition Blind Flanges manufacturerss in India. Call us for stockist of Class 150 whiz stifle Flanges in india. A105 Carbon Steel Scene Blind Flanges, most ideal condition, cost as we are phenomenal separated from other suppliers and carrier of Carbon Steel Display Blind Flanges in India. suppliers of Clamor 86029 PN10 Blind Exhibition Flanges in india. Planning to buy Class 150 show weaken Flanges, most very smart arrangement, cost in India, demand regard list from Manufactured scored show shock Flanges including Carbon steel show cripple Flanges, Level Face Scene Blind Flanges and Alloy 20 Display Blind Flanges. We pass on Stainless Steel 316l Scene Blind Flanges, Exhibition Blind Flanges Level Face and show cripple Flanges 300 at confined rate considering sensible expert hours in India. Band together with Us for Most recent and Refreshed regard Rundown of Stainless Steel Display Blind Flanges and Inconel 625 Exhibition Blind Flanges. Our solid and submitted staff has drawn in us to become Exhibition Blind Flanges manufacturerss in India. View Display cripple Flanges weight outline and show smother Flanges assessments, We are driving suppliers of Scene stifle Flanges ASME B16.48.

Nutech Overseas is guaranteeing significant advancement of the ANSI B16.48 Scene Flanges as shown by need of clients. Expansion to it, to guarantee more secure transportation thing is full in Container boxes and Therapist wrapped. We offer assembled level of AWWA C207 Display flanges things at sensible rates.

We are ANSI B16.48 Class 150 Scene Blind Flanges exporters in india. Show Blind flanges manufacturers in India that is guaranteeing in satisfying each of the approaches of different industry. Searching for Exhibition Blind Flanges manufacturers in India call us now. We have the outfitted assembling plant with the high kind of unsavory materials, as a rule, utilize near the use of most recent unforeseen new turn of events and present day gear, the shot at ASME B16.48 Display Blind Flanges Raised Face has a ton of gotten to the next level.

Searching areas of strength for of ASME B16.48 Scene Flanges and Stainless Steel Exhibition Blind Flanges in india. We are keeping up wide deftly of Stainless Steel Display Blind Flange.Nutech Overseas is distFlangesuter and stockist of ASME B16.47 Series a Level Face Exhibition Blind Flanges in different sizes. We are EN 1092-1 Sort 02 Exhibition Flanges supplierss in india. Communicate with us tolerating you are searching for ANSI B16.5 show shock Flanges level face stockist in india.

Specification of Ring Spacers Flanges

Material of Spectacle Flange

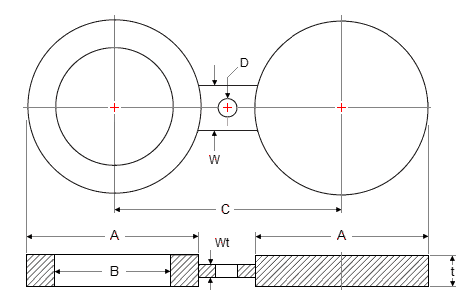

Dimensions of Spectacle Flange

Pressure Class 150

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	45	16	60	3	38
3/4	54	21	70	3	38
1	64	27	80	3	38
1¼	73	42	90	6.4	38
1½	83	48	100	6.4	38
2	102	61	120	6.4	51
2½	107	73	140	6.4	51
3	133	89	150	6.4	64
3½	159	102	175	9.7	64
4	172	114	190	9.7	64
5	194	141	215	9.7	76
6	219	168	240	12.7	76
8	276	219	300	12.7	76
10	337	273	360	15.7	102
12	406	324	430	19.1	102
14	448	356	475	19.1	108
16	511	406	460	22.4	108
18	546	457	580	25.4	114
20	603	508	635	28.4	121
24	714	610	750	31.8	140
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 300

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	51	16	65	6.4	38
3/4	64	21	80	6.4	38
1	70	27	90	6.4	38
1¼	79	42	100	6.4	38
1½	92	48	115	6.4	38
2	108	61	125	9.7	51
2½	127	73	150	9.7	51
3	146	89	170	9.7	64
3½	162	102	185	12.7	64
4	178	114	200	12.7	64
5	213	141	235	15.7	76
6	248	168	270	15.7	76
8	305	219	330	22.4	76
10	359	273	385	25.4	102
12	419	324	450	28.4	102
14	483	356	515	31.8	108
16	536	406	570	38.1	108
18	594	457	630	41.1	114
20	651	508	685	44.5	121
24	772	610	810	50.8	140
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 600

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	51	16	65	6.4	38
3/4	64	21	80	6.4	38
1	70	27	90	6.4	57
1¼	79	37	100	9.7	57
1½	92	43	115	9.7	67
2	108	55	125	9.7	57
2½	127	67	150	12.7	67
3	146	83	170	12.7	67
3½	159	96	185	15.7	76
4	191	108	215	15.7	76
5	238	135	265	19.1	86
6	264	162	290	22.4	86
8	318	212	350	28.4	95
10	397	265	430	35.1	105
12	454	315	490	41.1	105
14	489	346	525	44.5	114
16	562	397	605	50.8	124
18	610	448	655	53.8	133
20	679	497	725	63.5	133
24	787	597	840	73.2	152
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 900

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	60	16	80	6.4	38
3/4	67	21	90	6.4	41
1	76	27	100	6.4	57
1¼	86	37	110	9.7	57
1½	95	43	125	9.7	67
2	140	55	165	12.7	57
2½	162	67	190	12.7	67
3	165	83	190	15.7	67
4	203	108	235	19.1	76
5	244	135	280	22.4	86
6	286	162	320	25.4	86
8	356	212	395	35.1	95
10	432	265	470	41.1	105
12	495	315	535	47.8	105
14	518	346	560	53.8	114
16	572	397	615	60.5	124
18	635	448	685	66.5	133
20	696	497	750	73.2	133
24	835	597	900	88.9	152
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 1500

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	61	16	80	6.4	38
3/4	67	21	90	9.7	41
1	76	27	100	9.7	64
1¼	86	35	110	9.7	64
1½	95	41	125	12.7	70
2	140	53	165	12.7	70
2½	162	63	190	15.7	76
3	172	78	205	19.1	76
4	206	102	240	22.4	89
5	251	128	290	28.4	89
6	279	154	320	35.1	89
8	349	203	395	41.1	102
10	432	255	480	50.8	114
12	518	303	570	60.5	114
14	575	333	635	66.5	127
16	638	381	705	76.2	133
18	702	429	775	85.9	146
20	752	478	830	95.3	152
24	899	575	990	111.3	178
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Pressure Class 2500

NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W
1/2	67	16	90	9.7	38
3/4	73	21	95	9.7	41
1	83	27	110	9.7	64
1¼	102	35	130	12.7	64
1½	114	41	145	15.7	70
2	143	53	170	15.7	70
2½	165	63	195	19.1	76
3	194	78	230	22.4	76
4	232	102	275	28.4	89
5	276	128	325	35.1	89
6	314	154	370	41.1	89
8	384	198	440	53.8	102
10	473	248	540	66.5	114
12	546	289	620	79.2	114
NPS	Outside Ø A	Inside Ø B	Center Line C	THK t	Web Width W

Weight Chart Of grooved spectacle blind Flange
