Spades And Ring Spacers Flanges

  • Home
  • Spades And Ring Spacers Flanges

AStainless Steel Spades and Ring Spacers are as demonstrated by a general point of view in each useful sense, ambiguous from Display Blinds, close to how both are not joined to each other. Spades and Spacers are applied in structures where sponsorship is consistently horrid, or in applications with huge line sizes. Subordinate upon the Spades and Ring Spacers Flanges size and the Strain Class, Spades can genuinely look at different pounds.

ASME B16.48 Spades and Ring Spacers manufacturers in India. We pass on Oar Spacer and Blind, Oar Spacer ASME B16.48, EN 1092-2 PN16 Funneling Oar Spacer and Stainless Steel Spades and Ring Spacers at bound rate in view of reasonable master hours in India and amazing deftly of first class ANSI B16.48 Oar Spacer, most ideal situation, cost open in Mumbai, India.

Nutech Overseas is most strong Manufacturers of Spacer Ring ASME B16.48 figured out by Saudi Aramco. We keep up wide store of Very Duplex Steel Spade Flanges.Nutech Overseas is carrier and stockist of Ring Spacers Flanges, Oar Spacers Flanges in various sizes.

Spades And Ring Spacers Flanges Manufacturers, Spades And Ring Spacers Flanges Suppliers, Spades And Ring Spacers Flanges Stockists, Spades And Ring Spacers Flanges Exporters

Spades And Ring Spacers Flanges Manufacturers in India, Spades And Ring Spacers Flanges Suppliers in India, Spades And Ring Spacers Flanges Stockists in India, Spades And Ring Spacers Flanges Exporters in India

Expecting to purchase Stainless Steel Spades and Ring Spacers, most ideal situation, cost in India, request respect list from Line Flanges Ring Spacer including ASME B16.48 Oar Clear Flanges, B16.48 Spade Blind and ASME B16.48 Alloy Steel Spade. Carbon Steel Oar Spacer to Bahrain, Russia, UK, Kuwait, Egypt,Canada, Iran, Qatar, USA, France, Indonesia, UAE, Oman, Turkey, Singapore, Malaysia, Italy, Thailand, Sweden, Israel, Germany, Australia, Sri Lanka and Saudi Arabia.

We are world's driving supplier of ASME B16.48 Spades and Ring Spacers, most ideal situation, cost as we are one of the most striking supplier and Supplierof MSS SP-44 B16.48 Oar Spacer in India. We have our stocking wholesalers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our ASME B16.48 Spades and Ring Spacers cost going before buying Copper Alloy Steel Spade Flanges from India or China. other than mail for our live deftly of Class 300 Oar Spacer and Clear to check types and sizes with our planned stock we can give you best expense of ASME B16.47 Series a Rtj Oar Spacer.

We can in like manner give free occasion of Oar Clear ASME B16.48,Nutech Overseas is having our Vendor and Merchant in Karnataka, Bhosari, Rajkot, Ghaziabad, Pune, Madhya Pradesh, Delhi, Haryana, West-Bengal, Khopoli, Kolkata, Rajasthan, Ludhiana, Uttar Pradesh, Aurangabad, Tamil Nadu,Bangalore, Vadodara, Indore, Raipur, Nagpur, Chhattisgarh, Karnataka, Chennai (Madras), Gujarat, Ahmedabad, Kolhapur, Faridabad, Jaipur, Punjab, Gurgaon, Maharashtra. So if you are looking for best expense of Racket 86029 PN10 Spade Blind or ASME B16.5 Spade for Raised Face association, Carbon Steel Spade flanges near you with most short period of time transport or free representation of Oar Clear Flanges.

Specification of Ring Spacers Flanges

ASME B16.5 Spade Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Ring Spacer Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Ring Spacers Flanges Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Pipe Flange Ring Spacer
Paddle Spacers Flange Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Ring Spacers Flanges
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Paddle Spacers Flange
UNI 6Bar 10Bar 16Bar 25Bar 40Bar Ring Spacer Flange
EN 6Bar 10Bar 16Bar 25Bar 40Bar Spades Ring Spacers Flanges
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Blind Spade Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
Ring Spacers Flanges: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Spades Ring Spacers Flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Ring Spacer Flange Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Paddle Spacers Flange

  •  Carbon Steel Pipe Flange Ring Spacer
    •  A105 Spade Flange
  •  Alloy Steel High-Temp Paddle Spacers Flange
    •  A182 Gr F1 Ring Spacer Flange
    •  A182 Gr F11 Ring Spacers Flanges
    •  A182 Gr F12 Pipe Flange Ring Spacer
    •  A182 Gr F22 Spade Flange
    •  A182 Gr F5 Blind Spade Flange
    •  A182 Gr F9 Paddle Spacers Flange
  •  Alloy Steel Low-Temp Spades Ring Spacers Flanges
    •  A350 Gr LF2 Ring Spacers Flanges
    •  A350 Gr LF3 Spade Flange
  •  Austenitic Stainless Steel Spades & Ring Spacers
    •  A182 Gr F304 Spades Ring Spacers Flanges
    •  A182 Gr F316 Paddle Spacers Flange
    •  A182 Gr F321 Ring Spacers Flanges
    •  A182 Gr F347 Spade Flange
    •  A182 Gr F304L Ring Spacer Flange
    •  A182 Gr F316L Pipe Flange Ring Spacer
    •  A182 Gr F317 Paddle Spacers Flange
    •  A182 Gr F317L Ring Spacers Flanges
    •  A182 Gr F321 Ring Spacer Flange
    •  A182 Gr F310 Blind Spade Flange
    •  A182 Gr 347 Spade Flange
  •  Nickel Alloy Ring Spacers Flanges
    •  ASTM B564 Blind Spade Flange
    •  astm b564 uns n06600 Ring Spacers Flanges
    •  astm b564 uns n06625 Spades Ring Spacers Flanges
    •  astm b564 uns no4400 Paddle Spacers Flange
    •  astm b564 uns n08810 Ring Spacers Flanges
    •  astm b564 uns n08811 Ring Spacer Flange
    •  astm b564 uns n08825 Spade Flange
    •  astm b564 uns n04400 Paddle Spacers Flange
    •  astm b564 uns n10276 Pipe Flange Ring Spacer
    •  astm b564 uns n10665 Blind Spade Flange
  •  Titanium Spades Ring Spacers Flanges
    •  astm b381 grade f2 Blind Spade Flange
    •  astm b381 f5 Pipe Flange Ring Spacer
    •  astm b381 f3 Spade Flange
    •  astm b381 f12 Paddle Spacers Flange
    •  astm b381 f7 Ring Spacers Flanges
    •  Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 Ring Spacer Flange



Dimensions of Pipe Flange Ring Spacer Flange

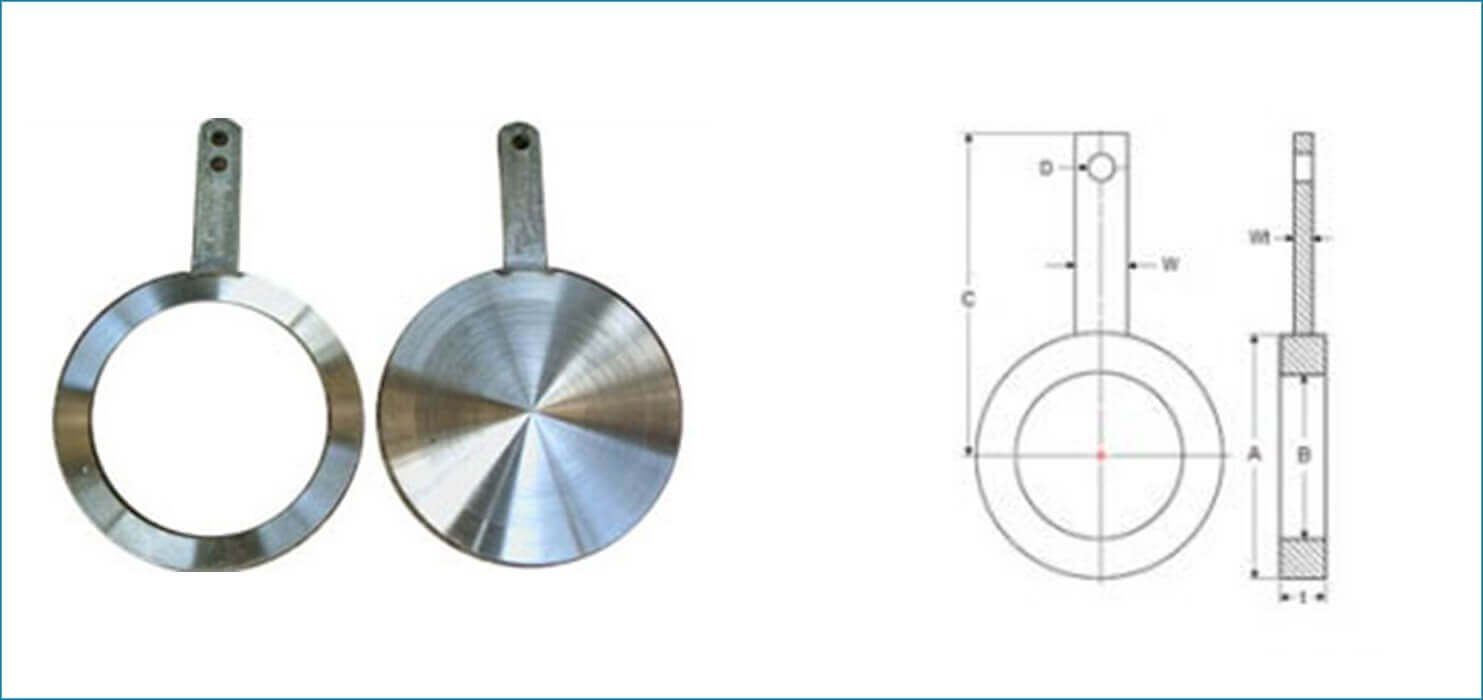

ASME B16.5 Spades and Ring Spacer Dimension

Class 150

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 45 16 126 3 32
3/4 54 21 131 3 32
1 64 27 136 3 32
1¼ 73 42 145 6.4 32
1½ 83 48 145 6.4 32
2 102 61 155 6.4 32
2½ 107 73 170 6.4 32
3 133 89 170 6.4 32
3½ 159 102 202 9.7 38
4 172 114 202 9.7 38
5 194 141 225 9.7 38
6 219 168 225 12.7 38
8 276 219 267 12.7 38
10 337 273 322 15.7 44
12 406 324 357 19.1 44
14 448 356 378 19.1 44
16 511 406 410 22.4 44
18 546 457 427 25.4 51
20 603 508 455 28.4 51
24 714 610 512 31.8 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Class 300

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
1¼ 79 42 150 6.4 32
1½ 92 48 150 6.4 32
2 108 61 158 9.7 32
2½ 127 73 177 9.7 32
3 146 89 177 9.7 32
3½ 162 102 205 12.7 38
4 178 114 205 12.7 38
5 213 141 240 15.7 38
6 248 168 240 15.7 38
8 305 219 281 22.4 38
10 359 273 333 25.4 44
12 419 324 363 28.4 44
14 483 356 395 31.8 44
16 536 406 422 38.1 44
18 594 457 450 41.1 51
20 651 508 480 44.5 51
24 772 610 540 50.8 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Class 600

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
1¼ 79 37 150 9.7 32
1½ 92 43 150 9.7 32
2 108 55 158 9.7 32
2½ 127 67 177 12.7 32
3 146 83 177 12.7 32
3½ 159 96 211 15.7 38
4 191 108 211 15.7 38
5 238 135 248 19.1 38
6 264 162 248 22.4 38
8 318 212 288 28.4 38
10 397 265 352 35.1 44
12 454 315 381 41.1 44
14 489 346 398 44.5 44
16 562 397 435 50.8 44
18 610 448 459 53.8 51
20 679 497 493 63.5 51
24 787 597 547 73.2 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Class 900

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 60 16 134 6.4 32
3/4 67 21 137 6.4 32
1 76 27 142 6.4 32
1¼ 86 37 151 9.7 32
1½ 95 43 151 9.7 32
2 140 55 174 12.7 32
2½ 162 67 186 12.7 32
3 165 83 186 15.7 32
4 203 108 217 19.1 38
5 244 135 259 22.4 38
6 286 162 259 25.4 38
8 356 212 307 35.1 38
10 432 265 370 41.1 44
12 495 315 401 47.8 44
14 518 346 412 53.8 44
16 572 397 440 60.5 44
18 635 448 471 66.5 51
20 696 497 501 73.2 51
24 835 597 571 88.9 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Class 1500

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 61 16 135 6.4 32
3/4 67 21 137 9.7 32
1 76 27 142 9.7 32
1¼ 86 35 151 9.7 32
1½ 95 41 151 12.7 32
2 140 53 174 12.7 32
2½ 162 63 190 15.7 32
3 172 78 190 19.1 32
4 206 102 219 22.4 38
5 251 128 256 28.4 38
6 279 154 256 35.1 38
8 349 203 303 41.1 38
10 432 255 370 50.8 44
12 518 303 412 60.5 44
14 575 333 442 66.5 44
16 638 381 472 76.2 44
18 702 429 504 85.9 51
20 752 478 530 95.3 51
24 899 575 603 111.3 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Class 2500

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 67 16 137 9.7 32
3/4 73 21 140 9.7 32
1 83 27 145 9.7 32
1¼ 102 35 161 12.7 32
1½ 114 41 161 15.7 32
2 143 53 175 15.7 32
2½ 165 63 201 19.1 32
3 194 78 201 22.4 32
4 232 102 232 28.4 38
5 276 128 273 35.1 38
6 314 154 273 41.1 38
8 384 198 321 53.8 38
10 473 248 390 66.5 44
12 546 289 427 79.2 44
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Spade Handles shall be solid with no openings.
  • Ring Spacer Handles shall have a single through indicator hole located near the end of the handle. The hole diameter shall not be less than 12 mm.
  • Wt = Thickness of the handle should be 6 mm minimum, or equal to Thickness (t) if less than 6 mm.
  • Spades and Ring Spacers should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical Alloyion as the mating flanges and piping involved.
  • Spades & Ring Spacers according to ASME B16.48 may be used for installation between ASME B16.5 flanges
  • Depending on a customer specification, some dimensions can be different from what on this page is defined.

Weight Chart Of Ring Spacer Flange

NPS
(Inches)		 DN
(mm)		 FLANGE OD
A MM		 FLANGE THICKNESS D
MM		 SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
1/ 2 15 88.9 11.2 0.4 0.5 0.4
3/ 4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0
