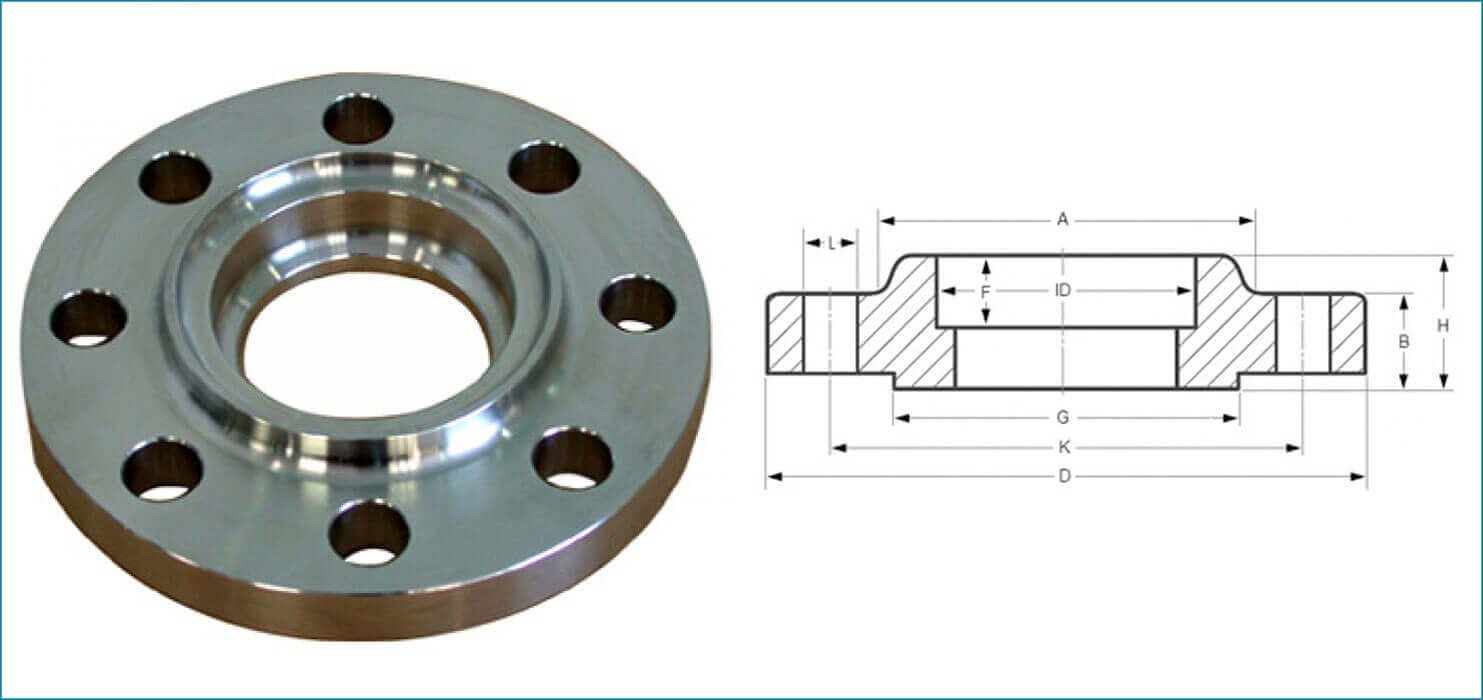

Socket Weld Flanges

  • Home
  • Socket Weld Flanges

Socket Weld Flanges, Attachment Weld flanges manufacturerss, Attachment Weld Flanges Exporters, Attachment Weld Flanges supplierss, Attachment Weld flanges Stockists. ASME B16.5 SWRF Flanges Aspects, manufacturers Of Carbon Steel Attachment Weld Flanges In India.

Nutech Overseas, We are making and suppliying Diminishing Attachment Weld Flanges from latest 20 years in India. You Can Check 300# Attachment Weld Flanges Aspects and Class 150 Attachment Weld Flanges Aspects. We have most essential store of 1 inch Attachment Weld Flanges and Code 62 Attachment Weld Flanges in India. Our Attachment Weld Flanges Rating will help you with buying right Stainless Steel Diminishing Attachment Weld Flanges. Cemented Steel Attachment Weld flanges figured out by Saudi Aramco. We keep up wide successfully of Attachment Weld Raised Face Flange.Nutech Overseas stock undoubtedly level of ASME B16.5 Swrf flanges, Level Face Attachment Weld Flanges in Stock in various sizes.

If you are expecting to buy ANSI B16.5 Attachment Weld flanges, most ideal situation, cost in India, check our expense of Stainless Steel Attachment Weld Flanges including Class 300 Attachment Weld Flanges, Attachment Weld Ring Joint Flanges and 3 Inch Attachment Weld Flanges. Association Weld Manufactured flanges to UK, USA, Sweden, Israel, France, Italy, Canada, UAE, Australia, Germany, Russia, Oman, Kuwait, Qatar, Iran, Turkey, Egypt, Bahrain, Indonesia, Malaysia, Singapore, Thailand, Sri Lanka and Saudi Arabia.

Socket Weld Flanges Manufacturers, Socket Weld Flanges Suppliers, Socket Weld Flanges Stockists, Socket Weld Flanges Exporters

Socket Weld Flanges Manufacturers in India, Socket Weld Flanges Suppliers in India, Socket Weld Flanges Stockists in India

We can beyond question Stainlees Steel Attachment Weld Flanges, most ideal situation, cost as we are maybe the most staggering supplier and vendor of Alloy Steel Attachment Weld Flanges in Indium. We have our stocking shippers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our Nickel Alloy 2500 Lb Attachment Weld Flanges cost going prior to buying Carbon Steel Attachment Weld Flanges from India or China. other than mail for our live deftly of Mss Sp-44 Attachment Weld Line Flanges to check types and sizes with our set up stock we can give you best expense of Inconel Attachment Weld Decreasing Flanges.

We can other than give free delineation of Hastelloy Attachment Weld Sae Flange,Nutech Overseas is having our Seller and Wholesaler in Bangalore, Karnataka, Chennai (Madras), Tamil Nadu, Ahmedabad, Gujarat, Delhi, Pune, Maharashtra, Rajkot, Ghaziabad, Uttar Pradesh, Bhosari, Ludhiana, Punjab, Vadodara, Aurangabad, Faridabad, Gurgaon, Haryana, Indore, Madhya Pradesh, Jaipur, Rajasthan, Kolkata, West-Bengal, Khopoli, Karnataka, Kolhapur, Nagpur, Raipur, Chhattisgarh.. So if you are looking for best expense of Attachment Line Weld Neck Flanges or Copper Nickel Swrf Flanges, Carbon Steel Attachment Weld Flanges near you with most short period of time progress or free delineation of Rtj Attachment Weld Flanges.

Specification of Socket Weld Flanges

ASME B16.5 Socket Weld Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Socket Weld Pipe Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Socket Weld Reducing Flange Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Socket Weld Rtj Flange
SWRF Flanges Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Socket Weld Reducing Flange
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K SWRF Flanges
UNI 6Bar 10Bar 16Bar 25Bar 40Bar Socket Weld Pipe Flange
EN 6Bar 10Bar 16Bar 25Bar 40Bar Socket Weld Sae Flange
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Socket Weld Hub Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
Socket Weld Reducing Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Socket Weld Sae Flange
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Socket Weld Pipe Flange Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Socket Weld Flange

  •  Carbon Steel Socket Weld Rtj Flange
    •  A105 Socket Weld Flange
  •  Alloy Steel High-Temp SWRF Flanges
    •  A182 Gr F1 Socket Weld Pipe Flange
    •  A182 Gr F11 Socket Weld Reducing Flange
    •  A182 Gr F12 Socket Weld Rtj Flange
    •  A182 Gr F22 Socket Weld Flange
    •  A182 Gr F5 Socket Weld Hub Flange
    •  A182 Gr F9 SWRF Flanges
  •  Alloy Steel Low-Temp Socket Weld Sae Flange
    •  A350 Gr LF2 Socket Weld Reducing Flange
    •  A350 Gr LF3 Socket Weld Flange
  •  Austenitic Stainless Steel Socket Weld Flange
    •  A182 Gr F304 Socket Weld Sae Flange
    •  A182 Gr F316 SWRF Flanges
    •  A182 Gr F321 Socket Weld Reducing Flange
    •  A182 Gr F347 Socket Weld Flange
    •  A182 Gr F304L Socket Weld Pipe Flange
    •  A182 Gr F316L Socket Weld Rtj Flange
    •  A182 Gr F317 SWRF Flanges
    •  A182 Gr F317L Socket Weld Reducing Flange
    •  A182 Gr F321 Socket Weld Pipe Flange
    •  A182 Gr F310 Socket Weld Hub Flange
    •  A182 Gr 347 Socket Weld Flange
  •  Nickel Alloy Socket Weld Reducing Flange
    •  ASTM B564 Socket Weld Hub Flange
    •  astm b564 uns n06600 Socket Weld Reducing Flange
    •  astm b564 uns n06625 Socket Weld Sae Flange
    •  astm b564 uns no4400 SWRF Flanges
    •  astm b564 uns n08810 Socket Weld Reducing Flange
    •  astm b564 uns n08811 Socket Weld Pipe Flange
    •  astm b564 uns n08825 Socket Weld Flange
    •  astm b564 uns n04400 SWRF Flanges
    •  astm b564 uns n10276 Socket Weld Rtj Flange
    •  astm b564 uns n10665 Socket Weld Hub Flange
  •  Titanium Socket Weld Sae Flange
    •  astm b381 grade f2 Socket Weld Hub Flange
    •  astm b381 f5 Socket Weld Rtj Flange
    •  astm b381 f3 Socket Weld Flange
    •  astm b381 f12 SWRF Flanges
    •  astm b381 f7 Socket Weld Reducing Flange
    •  Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 Socket Weld Pipe Flange



Dimensions of Socket Weld Flange

ASME B16.5 Socket Weld Flange Dimension

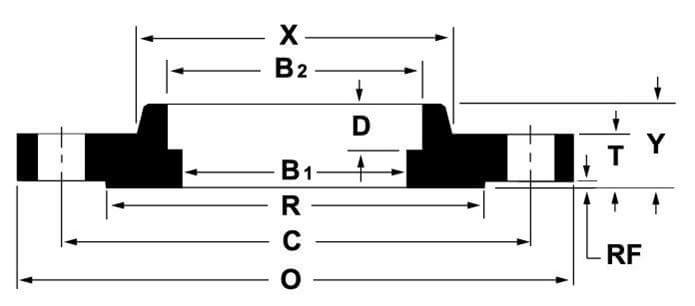

150 lb socket weld flange dimensions

Drilling
Nominal Bore Socket Weld Dia.(D) Thick.(E) Dia.(F) Dia.(B) Dia.(A) Height1(H) Nbr Holes Dia.(C)
1/2″
90
11.2
35.05
30
22.2
14
4
15.87
60.3
3/4″
100
12.7
42.92
38
27.7
14
4
15.87
69.9
1″
110
14.3
50.80
49
34.5
16
4
15.87
79.4
1 1/4″
115
15.9
63.50
59
43.2
19
4
15.87
88.9
1 1/2″
125
17.5
73.15
65
49.5
21
4
15.87
98.4
2″
150
19.1
91.94
78
61.9
24
4
19.05
120.7
2 1/2″
180
22.3
104.65
90
74.6
27
4
19.05
139.7
3″
190
23.9
127.00
108
90.7
29
4
19.05
152.4

300 lb socket weld flange dimensions

Drilling
Nominal Bore Socket Weld Dia.(D) Thick.(E) Dia.(F) Dia.(B) Dia.(A) Height1(H) Nbr Holes Dia.(C)
1/2″
90
11.2
35.05
30
22.2
14
4
15.87
60.3
3/4″
100
12.7
42.92
38
27.7
14
4
15.87
69.9
1″
110
14.3
50.80
49
34.5
16
4
15.87
79.4
1 1/4″
115
15.9
63.50
59
43.2
19
4
15.87
88.9
1 1/2″
125
17.5
73.15
65
49.5
21
4
15.87
98.4
2″
150
19.1
91.94
78
61.9
24
4
19.05
120.7
2 1/2″
180
22.3
104.65
90
74.6
27
4
19.05
139.7
3″
190
23.9
127.00
108
90.7
29
4
19.05
152.4

600# socket weld flange dimensions

Drilling
Nominal Bore Socket Weld >Dia.(D) Thick.(E) Dia.(F) Dia.(B) Dia.(A) Height1(H) Nbr Holes Dia.(C)
1/2″
95
14.3
35.05
38
22.2
22
4
15.87
66.7
3/4″
115
15.9
42.92
48
27.7
25
4
19.05
82.6
1″
125
17.5
50.80
54
34.5
27
4
19.05
88.9
1 1/4″
135
20.7
63.50
64
43.2
29
4
19.05
98.4
1 1/2″
155
22.3
73.15
70
49.5
32
4
22.22
114.3
2″
165
25.4
91.94
84
61.9
37
8
19.05
127.0
2 1/2″
190
28.6
104.65
100
74.6
41
8
22.22
149.2
3″
210
31.8
127.00
117
90.7
46
8
22.22
168.3

Weight Chart Of Socket Weld Flange

NPS
(Inches)		 DN
(mm)		 FLANGE OD
A MM		 FLANGE THICKNESS D
MM		 SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
1/ 2 15 88.9 11.2 0.4 0.5 0.4
3/ 4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0
