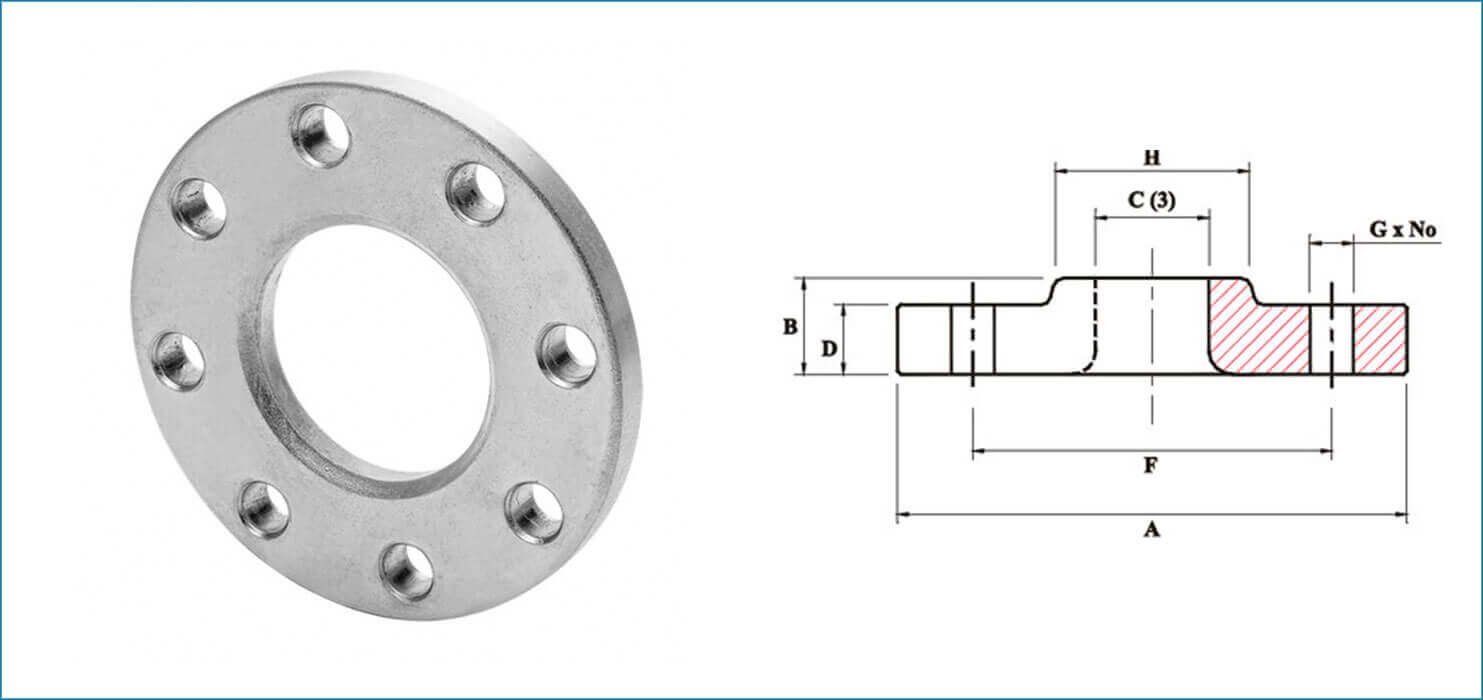

Lap Joint Flanges
ASME B16.5 Lap joint Flanges can be refined by two frameworks. Right when the line material is mind boggling the "lap" is spread out by detail the line material later the free Flanges has been fitted. If the straightening out material is quickly weld capable a "lap" end can be butt welded to the line. A105 Lap joint Flanges are fundamental for non-metallic straightening out and locales. Most materials are massively managed in tension than in strain. The Stainless Steel Lap joint Flanges is held in tension by the free Flanges which is in strain in view of the shock load.
Stainless Steel Lap joint Flanges manufacturers in India. We are giving Lap Joint Line Flanges, ASME B16.47 Lap Joint Flanges, 2 inch lap joint Flanges and Lap Joint Sponsorship Flanges at moderate cost pondering reasonable virtuoso hours in India and huge wellspring of astounding Lap Joint Line flanges, most ideal situation, cost open in Mumbai, India. Are you looking for Lap Joint Flanges With Stub End contact us for same, Check Lap Joint Flanges Aspects and Lap Joint Flanges Weight Diagram to buy Lap Joint Flanges Welding. We have clear Lap Joint Flanges Types and they are fundamental for Establishment Too. View Lap Joint Flanges Stub End Aspects.
Nutech Overseas obvious Manufacturers of Copper Nickel Lap Joint Flanges maintained by Saudi Aramco. We are most important stockist of MSS SP-44 Lap Joint Flange.Nutech Overseas is a distFlangesuter of complete level of ANSI 150# Lap Joint Flanges, ANSI B16.5 Class 150 Lap Joint Flanges in various sizes.
Lap Joint Flanges Manufacturers, Lap Joint Flanges Suppliers, Lap Joint Flanges Stockists, Lap Joint Flanges Exporters
Lap Joint Flanges Manufacturers in India, Lap Joint Flanges Suppliers in India, Lap Joint Flanges Stockists in India, Lap Joint Flanges Exporters in India
In case you are aiming to buy ANSI B16.5 Attachment Weld flanges, most ideal situation, cost in India, check our expense of Stainless Steel Attachment Weld Flanges including Class 300 Attachment Weld Flanges, Attachment Weld Ring Joint Flanges and 3 Inch Attachment Weld Flanges. Attachment Weld Produced flanges to UK, USA, Sweden, Israel, France, Italy, Canada, UAE, Australia, Germany, Russia, Oman, Kuwait, Qatar, Iran, Turkey, Egypt, Bahrain, Indonesia, Malaysia, Singapore, Thailand, Sri Lanka and Saudi Arabia.
We are most conspicuous stockist of MSS SP-44 Lap Joint Flanges, most ideal situation, cost as we are one of the most amazing supplier and carrier of Carbon Steel Lap Joint Flanges in India. We have our stocking carriers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our ANSI B16.5 Lap Joint Flanges cost preceding buying RTJ Lap Joint Flanges from India or China. moreover mail for our live heap of Carbon Steel Lap Joint Flanges to check types and sizes with our pre-arranged stock we can give you best expense of Copper nickel lap joint Flanges.
We can in like manner give free case of Raised Face Lap Joint Flange,Nutech Overseas is having our Seller and Wholesaler in Delhi, Aurangabad, Ghaziabad, West-Bengal, Bhosari, Rajasthan, Gurgaon, Kolkata, Tamil Nadu, Khopoli, Punjab, Faridabad, Pune, Madhya Pradesh, Raipur, Maharashtra, Kolhapur, Jaipur, Ludhiana, Chennai (Madras), Gujarat, Indore, Ahmedabad, Rajkot, Nagpur, Vadodara, Karnataka,Bangalore, Uttar-Pradesh, Karnataka, Chhattisgarh, Haryana. So if you are looking for best expense of AWWA C207 A105 Lap Joint Flanges or ASME B16.47 Series b Lap Joint Flanges, ASME B16.5 Class 600 Lap Joint Flanges near you with most short period of time transport or free example of ASME B16.5 Lap Joint Flanges.
Specification of Lap Joint Flanges
| ASME B16.5 Lap Joint Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
|---|---|
| Lap Joint Pipe Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| RTJ Lap Joint Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Lap Joint Stub End Flanges |
| RF Lap Joint Flange Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 RTJ Lap Joint Flange |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K RF Lap Joint Flange |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar Lap Joint Pipe Flanges |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar Lap Joint Ring Flange |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Stainless Steel Lap Joint Flange |
| Most common types of Lap Joint Weld Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
| Lap Joint Pipe Flanges Uses & application |
|
| Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Material of Lap Joint Flange
- Carbon Steel Lap Joint Stub End Flanges
- A105 Lap Joint Flange
- Alloy Steel High-Temp RF Lap Joint Flange
- A182 Gr F1 Lap Joint Pipe Flanges
- A182 Gr F11 RTJ Lap Joint Flange
- A182 Gr F12 Lap Joint Stub End Flanges
- A182 Gr F22 Lap Joint Flange
- A182 Gr F5 Lap Joint Weld Flange
- A182 Gr F9 RF Lap Joint Flange
- Alloy Steel Low-Temp
Lap Joint Ring Flange
- A350 Gr LF2 RTJ Lap Joint Flange
- A350 Gr LF3 Lap Joint Flange
- Austenitic Stainless Steel Lap Joint Flange
- A182 Gr F304 Lap Joint Ring Flange
- A182 Gr F316 RF Lap Joint Flange
- A182 Gr F321 RTJ Lap Joint Flange
- A182 Gr F347 Lap Joint Flange
- A182 Gr F304L Lap Joint Pipe Flanges
- A182 Gr F316L Lap Joint Stub End Flanges
- A182 Gr F317 RF Lap Joint Flange
- A182 Gr F317L RTJ Lap Joint Flange
- A182 Gr F321 Lap Joint Pipe Flanges
- A182 Gr F310 Lap Joint Weld Flange
- A182 Gr 347 Lap Joint Flange
- Nickel Alloy RTJ Lap Joint Flange
- ASTM B564 Lap Joint Weld Flange
- astm b564 uns n06600 RTJ Lap Joint Flange
- astm b564 uns n06625 Lap Joint Ring Flange
- astm b564 uns no4400 RF Lap Joint Flange
- astm b564 uns n08810 RTJ Lap Joint Flange
- astm b564 uns n08811 Lap Joint Pipe Flanges
- astm b564 uns n08825 Lap Joint Flange
- astm b564 uns n04400 RF Lap Joint Flange
- astm b564 uns n10276 Lap Joint Stub End Flanges
- astm b564 uns n10665 Lap Joint Weld Flange
- Titanium
Lap Joint Ring Flange
- astm b381 grade f2 Lap Joint Weld Flange
- astm b381 f5 Lap Joint Stub End Flanges
- astm b381 f3 Lap Joint Flange
- astm b381 f12 RF Lap Joint Flange
- astm b381 f7 RTJ Lap Joint Flange
- Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 Lap Joint Pipe Flanges

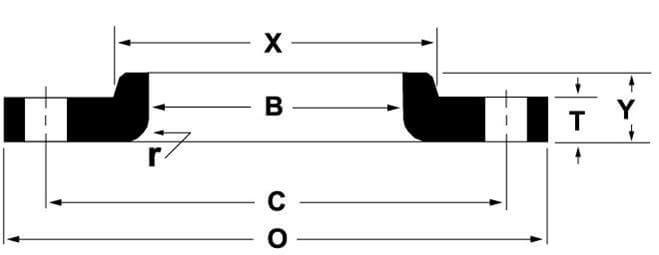

Dimensions of Lap Joint Flange
| Nominal Pipe Size | Outside Diameter (O) | Thickness (T) | Length Thru Hub (Y) | Hub Diameter (X) | Radius (r) | Bore (B) | Bolt Circle (C) | Number of Holes | Diameter of Holes |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 3.50 | 0.44 | 0.63 | 1.19 | 0.13 | 0.90 | 2.38 | 4 | 0.63 |
| 3/4 | 3.88 | 0.50 | 0.63 | 1.50 | 0.13 | 1.11 | 2.75 | 4 | 0.63 |
| 1 | 4.25 | 0.56 | 0.69 | 1.94 | 0.13 | 1.38 | 3.13 | 4 | 0.63 |
| 1 1/4 | 4.63 | 0.63 | 0.81 | 2.31 | 0.19 | 1.72 | 3.50 | 4 | 0.63 |
| 1 1/2 | 5.00 | 0.69 | 0.88 | 2.56 | 0.25 | 1.97 | 3.88 | 4 | 0.63 |
| 2 | 6.00 | 0.75 | 1.00 | 3.06 | 0.31 | 2.46 | 4.75 | 4 | 0.75 |
| 2 1/2 | 7.00 | 0.88 | 1.13 | 3.56 | 0.31 | 2.97 | 5.50 | 4 | 0.75 |
| 3 | 7.50 | 0.94 | 1.19 | 4.25 | 0.38 | 3.60 | 6.00 | 4 | 0.75 |
| 3 1/2 | 8.50 | 0.94 | 1.25 | 4.81 | 0.38 | 4.10 | 7.00 | 8 | 0.75 |
| 4 | 9.00 | 0.94 | 1.31 | 5.31 | 0.44 | 4.60 | 7.50 | 8 | 0.75 |
| 5 | 10.00 | 0.94 | 1.44 | 6.44 | 0.44 | 5.69 | 8.50 | 8 | 0.88 |
| 6 | 11.00 | 1.00 | 1.56 | 7.56 | 0.50 | 6.75 | 9.50 | 8 | 0.88 |
| 8 | 13.50 | 1.13 | 1.75 | 9.69 | 0.50 | 8.75 | 11.75 | 8 | 0.88 |
| 10 | 16.00 | 1.19 | 1.94 | 12.00 | 0.50 | 10.92 | 14.25 | 12 | 1.00 |
| 12 | 19.00 | 1.25 | 2.19 | 14.38 | 0.50 | 12.92 | 17.00 | 12 | 1.00 |
| 14 | 21.00 | 1.38 | 3.13 | 15.75 | 0.50 | 14.18 | 18.75 | 12 | 1.13 |
| 16 | 23.50 | 1.44 | 3.44 | 18.00 | 0.50 | 16.19 | 21.25 | 16 | 1.13 |
| 18 | 25.00 | 1.56 | 2.88 | 19.88 | 0.50 | 18.2 | 22.75 | 16 | 1.25 |
| 20 | 27.50 | 1.69 | 4.06 | 22.00 | 0.50 | 20.25 | 25.00 | 20 | 1.25 |
| 22 | 29.50 | 1.81 | 4.25 | 24.25 | 0.50 | 22.25 | 27.25 | 20 | 1.38 |
| 24 | 32.00 | 1.88 | 4.38 | 26.13 | 0.50 | 24.25 | 29.50 | 20 | 1.38 |
Weight Chart Of Lap Joint Flange
| NPS (Inches) |
DN (mm) |
FLANGE OD A MM |
FLANGE THICKNESS D MM |
SLIP ON FLANGE WEIGHT (KGS) | WELD NECK FLANGE WEIGHT (KGS) | BLIND FLANGE WEIGHT (KGS) |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
