ASME B16.11 Forged Plug Supplier
Threaded Hex, Bull Plug Manufacturer
ASME B16.11 Plugs: Dimensions | Specifications | Material Grade | About Forged Plugs | All Product Types
Forged Pipe Plugs, also referred to as End Plugs or Pipe End Closures, are essential components used to seal the ends of piping systems across a wide spectrum of industries including oil & gas, petrochemical, power generation, marine, and offshore platforms. At Nutech Overseas, we manufacture and supply a comprehensive range of ASME B16.11 and BS 3799-compliant pipe plugs, including Threaded and Socket Weld types, crafted to endure high-pressure and high-temperature conditions in Class 3000#, 6000#, and 9000# pressure ratings.
Our forged plug fittings are available in multiple head designs and thread types, such as Hex Head Plug, Square Head Plug, Bull Plug, Round Head Plug, and Countersunk (Flush) Plug, each engineered for specific installation and sealing requirements. Threading options include NPT (National Pipe Thread) and BSP (British Standard Pipe) to accommodate global piping standards. These plugs serve as reliable closures for the ends of pipes and fittings, preventing leakage and facilitating system maintenance or future expansion.
Manufactured using premium-grade materials like Carbon Steel ASTM A105/A105N, Low Temp Carbon A350 LF2 CL.1, Stainless Steel A182 F304/L, F316/L, F321/H, F347/H, 310, 904L, and Alloy Steel Grades F1, F5, F9, F11 CL.2, F22 CL.3, F91, our forged pipe plugs ensure long-lasting durability and corrosion resistance. We also offer Duplex and Super Duplex Steel (F51, F53, F55, F60) and Copper Nickel Alloys (90/10, 70/30) for applications demanding superior mechanical properties and resistance to aggressive environments.
With precision forging, tight dimensional tolerances, and advanced heat treatment processes, every plug we produce is rigorously tested and certified to meet international quality and safety standards. Our products are designed not only to meet specifications but also to add value through consistent performance, tight sealing, and ease of installation.
Whether you require bulk exports of standard sizes or customized forged plug solutions for your specific industry application, Nutech Overseas offers efficient global delivery via both air and sea freight, backed by robust packaging and traceable documentation. We export to over 50+ countries, including the USA, Germany, Spain, UAE, Saudi Arabia, and other Middle Eastern and European regions.
ASME B16.11 Forged Pipe Plug, BS 3799 Threaded Plug, Socket Weld End Plug – Available in Hex, Square, Round & Countersunk Designs, 3000# to 9000# Pressure Classes
For complete technical details, including dimensions, pressure ratings, weight charts, and material specifications of our Socket Weld and Threaded Pipe Plugs, please download the full Catalog PDF below.
Precision-Forged Pipe Plug Fittings in Carbon Steel, Stainless Steel, Duplex, and Alloy Grades – Engineered for Secure Pipe End Closure in High-Pressure Piping Systems
Technical Specifications of ASME B16.11 Hex Head Plugs
| Specification | Details |
|---|---|
| Product Name | Forged Pipe Plug / End Plug / Forged Steel Plug |
| Standard | ASME B16.11, ANSI B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS 3799 |
| Type | Hex Plug, Square Plug, Round Plug, Countersunk Plug (Flush Plug) |
| End Connections | Socket Weld (SW), Threaded (NPT, BSPP, BSPT) |
| Size Range | ¼" to 4" (DN 6 to DN 100) |
| Pressure Class | Class 2000 / 3000 / 6000 / 9000 LBS |
| Dimensions | As per ASME B16.11 and relevant MSS-SP dimensions |
| Manufacturing Process | Hot Forged, Machined, Heat Treated |
| Testing & Certification | 100% Pressure Tested, PMI, IGC, NACE MR0175, MTC as per EN 10204 3.1/3.2 |
| Application Industries | Oil & Gas, Construction, Ship Building, Power Plants, Petrochemical, Pharmaceutical, Water Treatment, Automobile, Chemical, Pulp & Paper |
| Origin | Made in India (by Nutech Overseas) |
| Export Network | USA, Europe, and Middle East |
Complete Material Grade Chart - ASME B16.11 Pipe Plugs
| Material | Grades / Standards / UNS Numbers |
|---|---|
| Stainless Steel Plugs | ASTM A182 F304 / F304L, F316 / F316L, F310, F321 / F321H, F347 / F347H, SS 904L, DIN 1.4301, 1.4306, 1.4401, 1.4404 |
| Carbon Steel Plugs | ASTM A105, ASTM A106 Gr B, ASTM A234 WPB, ASTM A350 LF2 CL.1, MSS-SP-75 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70 |
| Low Temperature Carbon Steel Plugs | ASTM A420 WPL3, ASTM A420 WPL6 |
| Alloy Steel Plugs | ASTM A182 F1, F5, F9, F11, F12, F22, F91, ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 |
| Duplex Steel Plugs | ASTM A815 UNS S31803, S32205, Werkstoff No. 1.4462 |
| Super Duplex Steel Plugs | ASTM A815 UNS S32750, S32760, S32950 |
| Nickel Alloys Plugs | Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Inconel 600 (UNS N06600), 601 (UNS N06601), 625 (UNS N06625), 800 (UNS N08800), 825 (UNS N08825), Monel 400 (UNS N04400), Monel K500 (UNS N05500), Hastelloy C276 (UNS N10276), Hastelloy C22 (UNS N06022), Alloy 20 (UNS N08020), Nimonic 75 / 90 |
| Copper Nickel Plugs | Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500), CuNi10Fe1Mn, CuNi30Mn1Fe |
| Titanium Plugs | Grade 1, Grade 2, ASTM B381 |
| Aluminium Plugs | ASTM B361, Aluminium 6061, 6082, 7075 |
| Brass Plugs | ASTM B62, C23000, C26000 |
| Bronze Plugs | Tin Bronze, Aluminium Bronze (C95400), Leaded Bronze (C93200), ASTM B148 |
| 254 SMO Plugs | UNS S31254, ASTM A182 F44 |
A Forged Pipe Plug is a solid, high-strength component used to seal the end of a piping connection, effectively stopping the flow within a pressure system. These plugs are part of the ASME B16.11 forged fittings range and are typically installed at unused outlets, branch connections, or during pressure testing operations. Depending on the configuration, they can be supplied with either Threaded (NPT/BSP) or Socket Weld ends.
Forged plugs are produced from forged bar stock or billets, offering superior strength, leak-proof performance, and high pressure resistance. They are commonly used in oil & gas pipelines, petrochemical plants, power stations, marine applications, and other industrial sectors where mechanical reliability is non-negotiable. Different styles like Hex Head, Square Head, Round Head, and Countersunk (Flush) Plugs provide flexibility for specific access and sealing requirements.
Quality is at the core of our forged fittings manufacturing process. Each Forged Pipe Plug is produced in accordance with international specifications such as ASME B16.11, BS 3799, MSS-SP-79, and MSS-SP-83. We ensure full traceability and compliance with material and dimensional standards, which is crucial for performance under high-pressure and high-temperature environments.
Our manufacturing facilities are ISO 9001:2015 certified, and we provide comprehensive Mill Test Certificates (MTC) as per EN 10204 3.1/3.2, along with third-party inspection reports if required. We also comply with PED 2014/68/EU, NACE MR0175, and IBR standards for applicable materials and service environments. Every plug is tested for pressure integrity, dimensional accuracy, and surface finishing, ensuring leak-tight sealing even in the most critical operations.
To ensure safe handling and transportation, Nutech Overseas follows industry-best packaging practices for all Forged Pipe Plugs. Each plug is cleaned, capped, and protected with rust-preventive coatings before being packed. We use fumigated wooden boxes, corrugated cartons, or bubble-wrapped bundles—depending on the order volume and customer preferences.
Proper labeling includes material grade, size, pressure class, heat number, and purchase order details to maintain full traceability. For overseas clients, we offer export-worthy seaworthy packaging compliant with international logistics standards. Whether shipping by air, sea, or land, we ensure timely and secure delivery to destinations across the USA, Europe, Middle East, and Asia through trusted freight partners.
We manufacture and supply a comprehensive range of Forged Pipe Plugs to meet diverse industry requirements and pressure classes. The main types include:
- Square Head Plug:
Commonly used in pipelines requiring frequent maintenance; allows easy removal using standard tools.

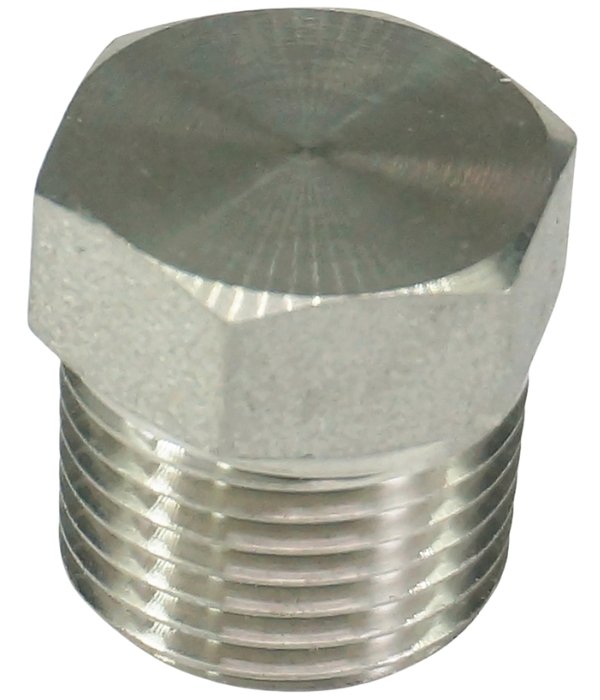

- Hex Head Plug:
Offers a flush surface with a hexagonal head for wrench-tightening in high-pressure systems.
- Round Head Plug:
Ideal for applications where aesthetic appearance and minimal projection are important.
- Countersunk Plug (Flush Plug):
Designed to sit flush with the pipe surface, reducing obstruction and allowing internal cleaning.
- Socket Weld Plug:
Welded into place for permanent sealing in high-pressure and high-temperature piping systems.
- Threaded Plug (NPT/BSP):
Screwed into threaded openings to provide a strong and leak-proof seal in temporary or low-pressure applications.
We proudly serves a global clientele by exporting ASME B16.11 Forged Pipe Plugs to over 45 countries. Our high-performance Threaded, Socket Weld, and Flush Type Plugs are trusted by engineers and procurement teams across key industrial hubs.
Our major export destinations include:
- United States (USA) – Supplying to petrochemical plants and pipeline contractors.
- Germany, France, and Italy – Catering to precision-driven mechanical and process industries in Europe.
- Saudi Arabia, UAE, and Qatar – Providing oilfield-approved forged plugs to EPC contractors and refineries.
- South Korea and Japan – Meeting demand for superior-quality fittings in high-temperature environments.
- Australia, South Africa, and Brazil – Supporting mining, LNG, and infrastructure sectors.
Absolutely. Forged Pipe Plugs can be custom-engineered to perform reliably in some of the harshest industrial conditions—including offshore drilling platforms, cryogenic systems, and high-temperature refinery operations.
In these environments, material selection is crucial. We offer plugs forged from a wide array of premium materials like Stainless Steel 316/L for corrosion resistance, Alloy Steel F22 for high-temperature tolerance, and Duplex/Super Duplex (F51, F55) for enhanced strength and seawater durability. For cryogenic services, Carbon Steel A350 LF2 CL.1 is often used due to its low-temperature impact toughness.
Moreover, we ensure compatibility with ASME B16.11, MSS-SP-79, and BS 3799 standards and provide threads like NPT and BSP, as well as pressure ratings from 3000# to 9000#, tailored for high-demand applications.
When choosing a forged pipe plug for high-pressure systems, consider:
- Pressure Class: Choose from 3000#, 6000#, or 9000# based on system pressure.
- Connection Type:
- Threaded Plugs (NPT/BSP) – Easy to install.
- Socket Weld Plugs – Stronger, leak-proof joints.
- Material Compatibility:
- Carbon Steel A105 – For general use.
- Stainless Steel 304/316 – For corrosion resistance.
- Alloy Steel F11/F22 or Duplex F51/F55 – For extreme conditions.
- Plug Type Selection:
- Square Head, Hex Head, Round Head, Bull Plug, or Countersunk (Flush) Plug.
