Full Coupling Suppliers

At Nutech Overseas, the manufacturing of Forged Couplings is governed by strict quality management systems and international standards compliance. Each coupling undergoes comprehensive checks at every stage — from raw material selection to final dispatch — to ensure dimensional accuracy, pressure integrity, and metallurgical strength.

We utilize advanced testing protocols such as:

1. Hydrostatic Testing
2. Ultrasonic Examination
3. Positive Material Identification (PMI)
4. Magnetic Particle & Dye Penetrant Testing
5. Hardness & Impact Tests (Charpy V-Notch)
6. Spectro Analysis for chemical composition

Our products meet or exceed the specifications of:

• ANSI/ASME B16.11
• BS 3799
• MSS-SP-79, MSS-SP-83
• ISO 9001:2015 Certified Quality Systems

Certifications provided upon request include:

• EN 10204 3.1 / 3.2 Test Certificates
• Raw Material Traceability Reports
• Third-Party Inspection Reports (TUV, Lloyd’s, BV, DNV, etc.)
• Mill Test Certificates (MTCs) with full heat number traceability

To ensure our Forged Couplings reach global clients in pristine condition, we employ robust export-grade packaging and logistics solutions tailored to both air and sea freight requirements.

Packaging Details:

• Couplings are individually or batch-packed in poly bags, corrugated boxes, or HDPE sealed packs.
• For bulk shipments, we use fumigated wooden crates or pallets with clear labeling for size, grade, heat number, and quantity.
• Waterproof and rust-preventive wrapping is applied to safeguard surface finishes during transit and storage.

Delivery Options:

• Air Freight: Ideal for urgent deliveries; dispatched via leading carriers like DHL, FedEx, or dedicated cargo routes to USA, Germany, UAE, and beyond.
• Sea Freight: Cost-effective for larger volumes; available in LCL or FCL containers to ports across Europe, the Middle East, and the Americas.
• EXW, FOB, CIF, and DDP incoterms supported as per client preference.

We ensure every shipment of Threaded or Socket Weld Couplings is backed by:

• Packing lists
• Commercial invoices
• Test certificates
• Country of origin declarations

With a strong logistics network and timely coordination, Nutech Overseas guarantees safe, compliant, and on-schedule delivery worldwide.

Nutech Overseas offers a complete range of Forged Couplings as per ASME B16.11, BS 3799, MSS-SP-83, and related global standards. These couplings are precision-forged to meet the diverse connection needs of high-pressure piping systems.

The main types include:

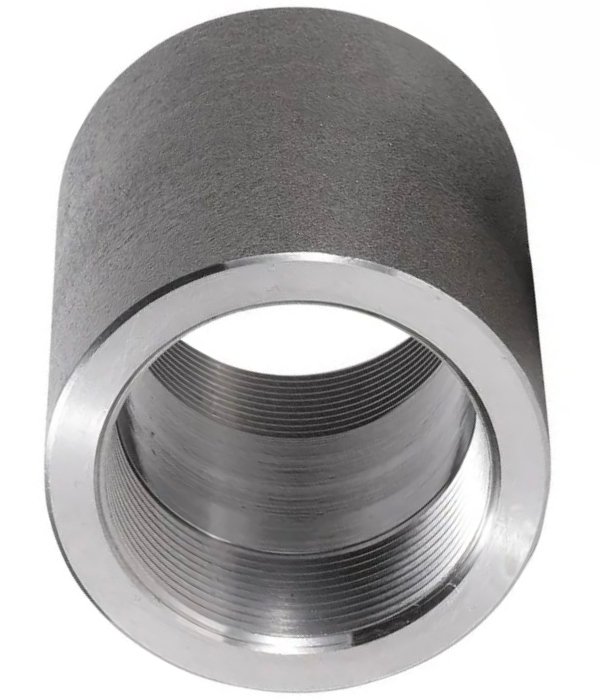

1. Full Coupling
   • Used to connect two pipes or a pipe to a nipple or swage.
   • Available in Threaded (NPT/BSP) and Socket Weld (SW) ends.
2. Half Coupling
   • Welded directly to a run pipe, allowing one end connection.
   • Often used for small bore branch connections.
3. Reducing Coupling
   • Joins pipes of different diameters.
   • Manufactured in concentric form for smooth flow transitions.

Each coupling type is engineered for high-pressure applications in sectors like Oil & Gas, Refineries, Power Plants, and Marine systems.

Our forged couplings are widely exported to key industrial markets including the USA, Europe (Germany, UK, France, Italy, Spain), the Gulf Cooperation Council (GCC) countries such as Saudi Arabia, UAE, Qatar, Oman, Kuwait, and Bahrain, along with major markets in the Middle East and Africa.

We tailor packaging and documentation to meet each region’s stringent import and quality regulations. Our export services include both Air Freight and Sea Freight to ensure timely delivery regardless of urgency or volume.

The combination of high-grade raw materials, stringent quality checks, and adherence to international standards makes our forged couplings the preferred choice for demanding projects globally.

Forged couplings offer superior mechanical strength and durability compared to fabricated couplings due to their manufacturing process. The forging method involves shaping metal under high pressure, which refines the grain structure and eliminates internal voids, resulting in enhanced toughness and resistance to fatigue. This makes forged couplings ideal for high-pressure and high-temperature applications commonly found in oil & gas, petrochemical, and marine industries. Additionally, forged couplings exhibit better dimensional accuracy and surface finish, ensuring reliable and leak-proof connections in critical piping systems. Their robust construction also reduces the risk of failure under extreme conditions, providing long-term operational safety and cost efficiency.

Material choice plays a crucial role in determining the durability, corrosion resistance, and overall performance of forged couplings. Carbon steel couplings, such as those made from ASTM A105/A105N, are commonly used in general industrial and oil & gas pipelines due to their excellent mechanical strength and affordability.

For environments prone to corrosion or extreme temperatures, stainless steel forged couplings (ASTM A182 grades like F304/L and F316/L) provide enhanced resistance against rust and chemical degradation. These are ideal for marine, chemical, and petrochemical industries.

In more demanding applications, alloy steel and high-nickel alloy couplings offer superior strength and resistance to thermal stress. Duplex and Super Duplex stainless steel couplings are preferred in offshore and harsh chloride environments, thanks to their combination of high tensile strength and corrosion resistance.

Choosing the right material ensures that forged couplings can withstand operational pressures, reduce maintenance frequency, and provide long-lasting reliability across diverse industrial sectors.
