ASME B16.11 Standard

ASME B16.11 defines forged fittings for the following pressure classes and nominal pipe size (NPS) ranges:

1. Pressure Classes:
   • Class 2000 – applicable for threaded fittings only
   • Class 3000 – for both Socket Weld & Threaded
   • Class 6000 – for both Socket Weld & Threaded
   • Class 9000 – for Socket Weld only
2. Size Range:
   • From ⅛ inch to 4 inches NPS (Nominal Pipe Size)

These fittings are designed for high-pressure and high-temperature services, commonly used in power plants, oil & gas facilities, chemical processing units, and marine piping systems. By specifying standard classes and sizes, ASME B16.11 ensures compatibility and safe operation across critical piping infrastructure.

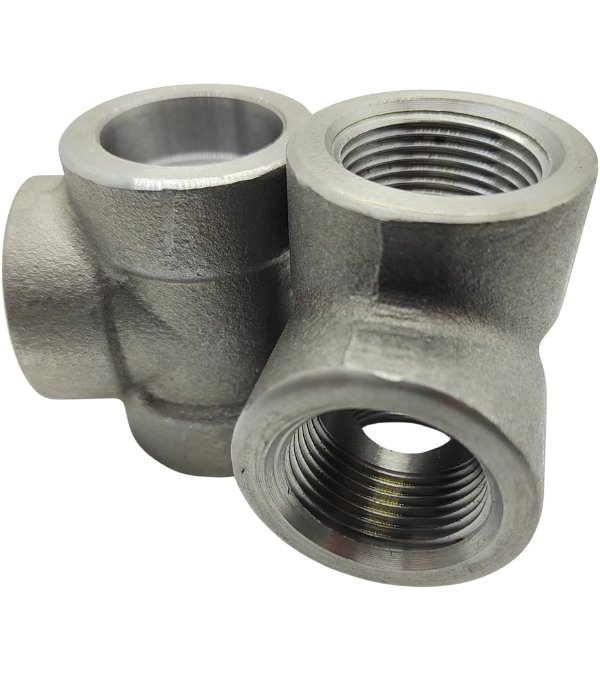

ASME B16.11 covers a complete range of forged socket weld and threaded fittings used for small bore, high-pressure piping systems. The standard includes:

1. Elbows – 45° & 90°, both socket weld and threaded
2. Tees – Equal and Reducing Tees
3. Couplings – Full and Half Couplings
4. Unions – Male-Female and Female-Female configurations
5. Caps – Socket weld and threaded pipe end protection
6. Plugs – Hex Head, Square Head, and Round Head
7. Bushings – Hex Head and Concentric
8. Crosses – Equal and Reducing (less common)
9. Swage Nipples & Reducing Inserts – As per manufacturer design within dimensional limits

These fittings are manufactured from forged materials such as Carbon Steel A105/A105N, Stainless Steel F304/F316, Alloy Steel F11/F22, Duplex & Super Duplex, and other high-performance alloys. They are available in NPT, BSP, or socket weld ends, complying with the dimensional tolerances and design criteria of the ASME B16.11 standard.

Forged fittings manufactured as per ASME B16.11 undergo rigorous quality control and are delivered with full mill test certifications and third-party inspection reports, ensuring global compliance. Key quality and certification aspects include:

Certifications & Standards Followed:

1. EN 10204 3.1 / 3.2 Mill Test Certificates
2. ISO 9001:2015 Quality Management System
3. PED 2014/68/EU Compliance (for EU markets)
4. NACE MR0175 / ISO 15156 for sour service applications
5. IBR Certification (for Indian boiler regulations, if applicable)
6. ASTM, ASME, ANSI, MSS, DIN, and BS standards compatibility

Each fitting is dimensionally inspected, hydro tested, and marked as per standards requirements, including pressure rating, material grade, heat number, and manufacturer identification — ensuring traceability and performance reliability in critical piping systems.

It defines strict dimensional standards and tolerances to ensure consistency, safety, and compatibility across all forged fittings such as Elbows, Tees, Couplings, Unions, and Caps in threaded and socket weld types.

Key Dimensional Tolerances Include:

1. Center-to-End Dimensions:

   Controlled for elbows and tees to ensure accurate fit-up and flow alignment.

2. Wall Thickness:

   Must not be less than 87.5% of the nominal wall thickness specified for the class. Extra thickness is permissible.

3. Inside Diameter (ID) and Bore:

   Permitted to vary slightly but must allow smooth flow and proper socket weld insertion depth.

4. Thread Dimensions:

   Threaded fittings comply with ASME B1.20.1 (NPT threads). Tolerances are tight to prevent leakage under pressure.

5. Socket Weld Dimensions:

   Socket depth, bore, and shoulder dimensions are standardized for accurate welding and positioning.

Each fitting is machined and gauged as per the tolerance table in ASME B16.11 to maintain interchangeability and high-pressure sealing integrity, especially in oil & gas and chemical applications.

Forged fittings manufactured under ASME B16.11 undergo strict heat treatment procedures to achieve the required mechanical strength, grain refinement, and resistance to pressure and temperature.

Common Heat Treatment Processes Applied:

• Normalizing

  Refines grain structure, enhances toughness, and relieves internal stress—used for Carbon Steel grades like ASTM A105.

• Annealing

  Softens the metal, improves ductility, and prepares stainless steels like A182 F304/L for machining.

• Quenching and Tempering

  Increases strength and hardness while maintaining ductility—often used in high-strength alloy steels.

• Solution Annealing

  Essential for Austenitic Stainless Steels (F316, F321) and Duplex Steels (F51/F53) to restore corrosion resistance.

• Stress Relieving

  Reduces residual stresses after forging or machining operations—important for maintaining dimensional stability.

All heat-treated forged fittings are verified through destructive and non-destructive tests (NDT), along with hardness and impact testing to confirm conformance to ASME B16.11 and applicable ASTM standards.
